2 Way Butterfly Valves

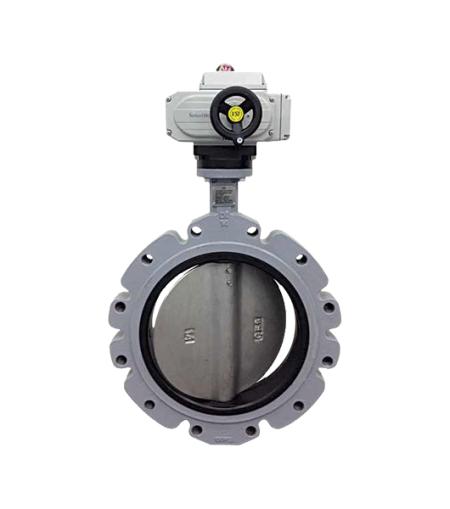

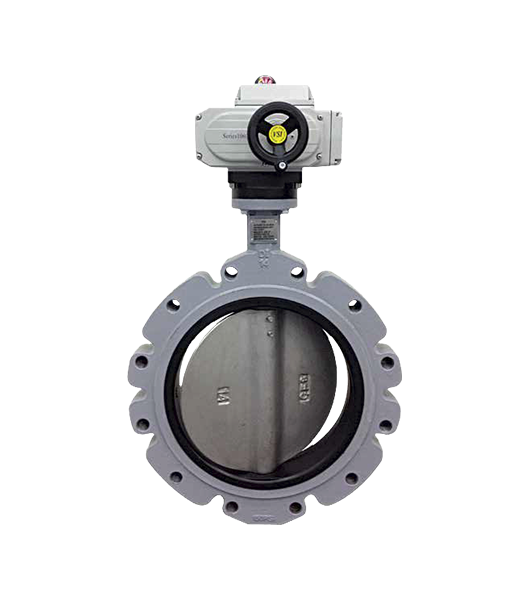

The Series 2100 butterfly valve is available in full cut (200 PSI close off) and undercut (100 PSI close off.) VSI Series 2100 butterfly valves have proven to be the most versatile design standard in the building and process control industries. Available as a tested package with a wide range of electric and pneumatic actuators and accessories to fit any application.
Standard features include:
- Ductile iron body
- SS 304 disc
- EPDM seat
- 100/200 PSI close off
- Sizes 2″ to 30″
Series 1000-X and 1000/S-X Electric Actuators
VSI” Series 1000-X and 1000/S-X electric actuators use proven technology to provide reliable valve and damper automation.
These electric actuators are available in many control configurations including open/close service and modulating position control.
With a deadband adjustable down to 0.5% and an 80% duty cycle, modulating service Series 1000-X and 1000/S-X actuators provide accurate dependable automation packages.
Product Documentation
| Valve Size | Actuator Type | VSI Part # | Download |
|---|---|---|---|
| 2" | N/A | S2110SS-02/1005-X | 5 downloads for all assemblies listed on the left: Submittal Document: |
| 2.5" | N/A | S2110SS-25/1005-X | |
| 3" | N/A | S2110SS-03/1005-X | |
| 4" | N/A | S2110SS-04/1005-X | |
| 5" | N/A | S2110SS-05/1005-X | |
| 6" | N/A | S2110SS-06/1010-X | |
| 8" | N/A | S2110SS-08/1020-X | |
| 10" | N/A | S2110SS-10/1020-X | |
| 12" | N/A | S2110SS-12/1040-X | |
| 14" | N/A | S2110SS-14/1040-X | |
| 16" | N/A | S2110SS-16/1100-X | |
| 18" | N/A | S2110SS-18/1100-X | |
| 20" | N/A | S2110SS-20/1160-X | |
| 24" | N/A | S2110SS-24/1250-X |
