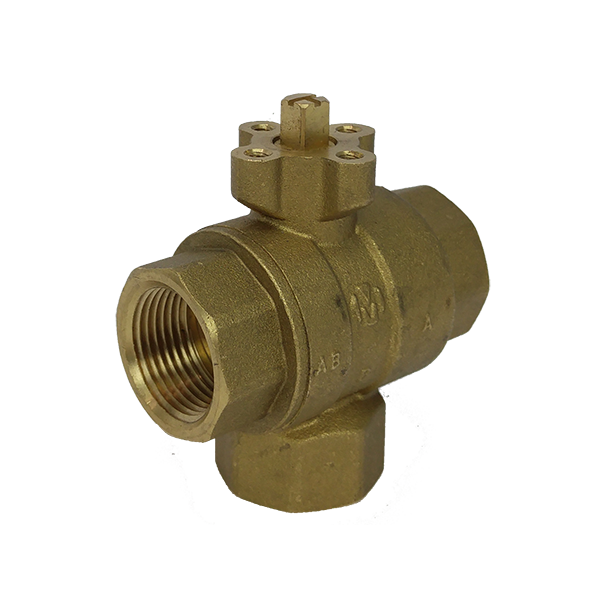

3 Way Ball Valve (Siemens 599 Series)

The Siemens 599 Series 3 way ball valves can be coupled to any commercially available actuator to provide three-way mixing or diverting flow control.

The ball valves are 1/4-turn rotary control valves and are available in 1/2-inch to 2-inch line sizes.

For more information, please check the Documentation tab below or send us an email. If you prefer to speak with one of our engineers, please call 770-740-0800.



Product Documentation

Document TypeDownload
Valve Product BrochureDownload PDF
Technical InstructionsDownload PDF

Additional Product Information

  • ANSI 250 valve body rating.
  • 200 psi close-off with ANSI Class IV leakage for all line sizes and actuators.
  • Available with chrome-plated brass ball and brass stem or stainless steel ball and stem.
  • Can be used as either a mixing or a diverting valve.
  • Blow-out proof stem withstands high pressure.
  • Universal actuator mounting.
  • Actuator and bracket can be rotated (90-degree increments).
  • Standoffs provide a thermal barrier between the actuator and the valve.
  • Operating handle for manual operation
