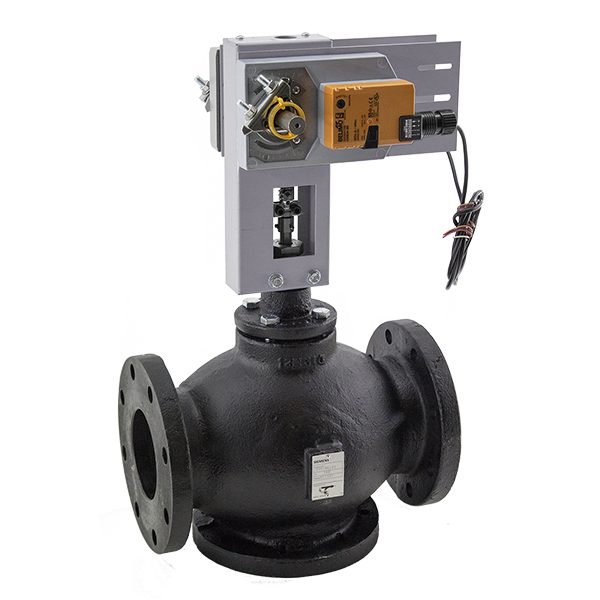

2 Way Flanged Globe Valve with Belimo Actuator

Siemens 2 Way Flanged Globe Valve

The Flowrite VF 599 series 2 way valves are designed to work with either a pneumatic or electronic actuator.

They are available in both ANSI Class 125 and 250 for normally closed or normally open action.

These Flowrite valves are generally recommended for water, steam, and glycol solutions to 50%.

  • Water inlet pressures up to ANSI 125 and ANSI 250 cast iron body rating
  • Water modulating differential pressure up to 25 psi (172 kPa) for bronze trim and 50 psi (345 kPa) for stainless steel trim
  • Steam inlet to 100 psig and modulating differential pressure up to 50 psi (345 kPa)
Belimo Damper Actuators

Belimo damper actuators are easily mounted with VSI damper linkages.

These actuators are available in 24VAC, 120V or 220V, modulating or floating service as well as spring return or non-spring return.

Belimo offers a fail-safe version of larger damper actuators. Fail-safe actuators are a cost-effective alternative to mechanical spring return.

Please contact a VSI representative for additional options.



Product Documentation

TrimValve SizeValve TypeDocument TypeDownload
Bronze2.5" to 6"ModulatingSubmittal DocumentDownload PDF
Bronze2.5" to 6"2 PositionSubmittal DocumentDownload PDF
Stainless Steel2.5" to 6"ModulatingSubmittal DocumentDownload PDF
Stainless Steel2.5" to 6"2 PositionSubmittal DocumentDownload PDF
