Series L Low Pressure Pneumatic Actuator
Categories: ,

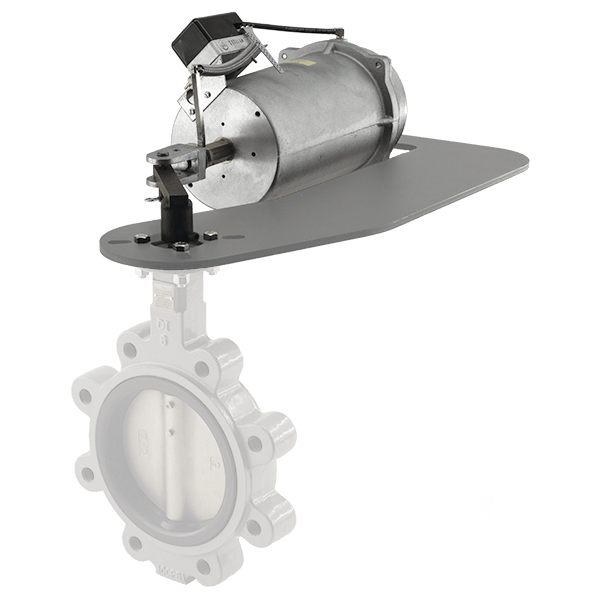

Low Pressure Pneumatic Actuator (Series L)

Share

The Series L “low pressure” pneumatic actuator features an aluminum housing that accepts a 20-25 psig supply to operate.

The nominal 8-13 psi spring range allows the piston to extend while the swivel connection provides non-binding movement.

A pilot positioner can also be ordered giving the actuator an adjustable 3-13 psi span for accurate proportional control.

Each version is inherently spring return when loss of air pressure occurs making these an economical solution for fail-safe commercial valve automation.

Features

Minimum air supply: 20psig
Maximum air supply: 30psig
Air consumption: 2 SCIM (0.55 mL/s)
Stroke:

  • D-3153 – 3 inches
  • D-3244 – 4 inches
  • D-3246 – 6 inches

Ambient operating conditions: -20 to 150°F (-29° to 66°C)
Body: Die-cast Aluminum
Diaphragm: Synthetic elastomer
Effective diaphragm:

  • D-3153 – 15 inch² (97 cm²)
  • D-3244 & D-3246 – 23.4 inch² (151 cm²)

Spring range (nominal): 8 to 13 psig
Air connection: 1/8” NPT Barbed fitting
