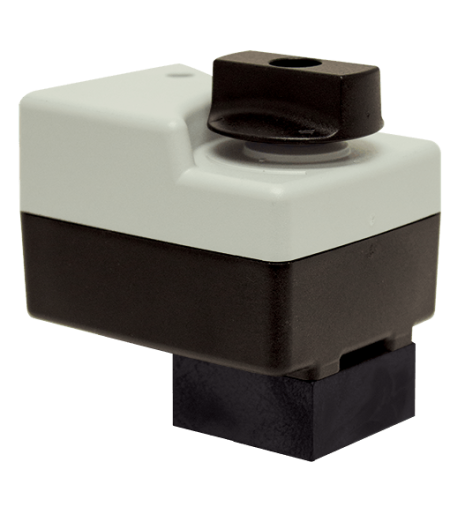

The Series TR commercial electric actuator makes ball valve automation simple with its “one-screw” connection utilizing the VSI direct mount linkage.
Utilizing a 24VAC power supply, this compact 18 inlb (2 NM) actuator is available with floating, on/off or modulating control for VAV boxes and unit ventilator applications.
The manual handle enables override operation without removing power source.
Product Documentation
| Document Type | Download |
|---|---|
| Actuator Product Brochure |  |
Additional Product Information
Position Indicator: Integrated into handle
Manual Override: Push down handle
Humidity: 5 to 95% RH non-condensing
Ambient Temperature Range: -22°F to +122°F
Storage Temperature Range: -40°F to +176°F
Housing: NEMA 1/IP40
Housing Material: UL94-5V(B)
Noise Level (Motor): <35 dB (A)
Quality Standard: ISO 9001
