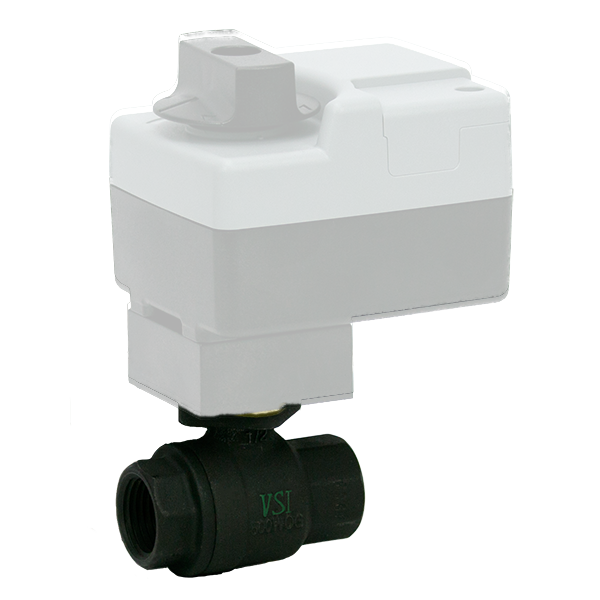

Series VC V-Port Control Ball Valve

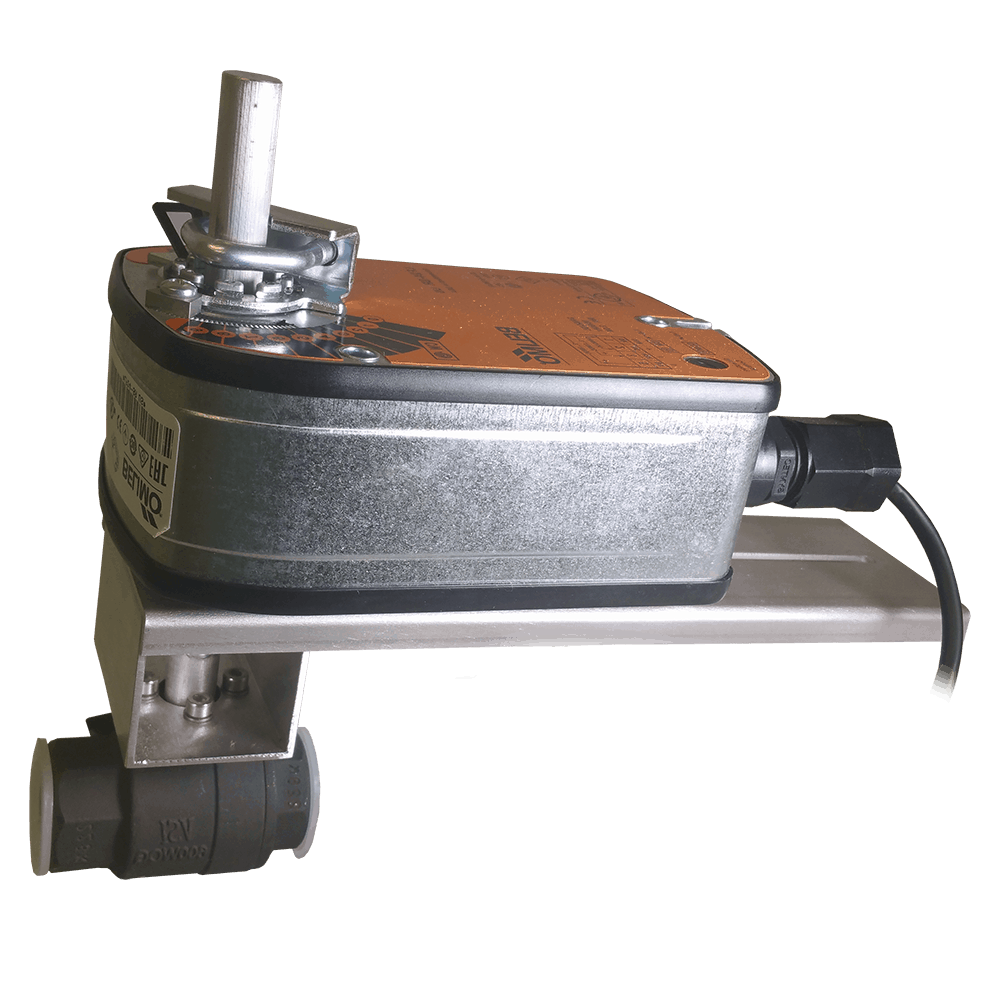

Series VC with Belimo and aluminum plate

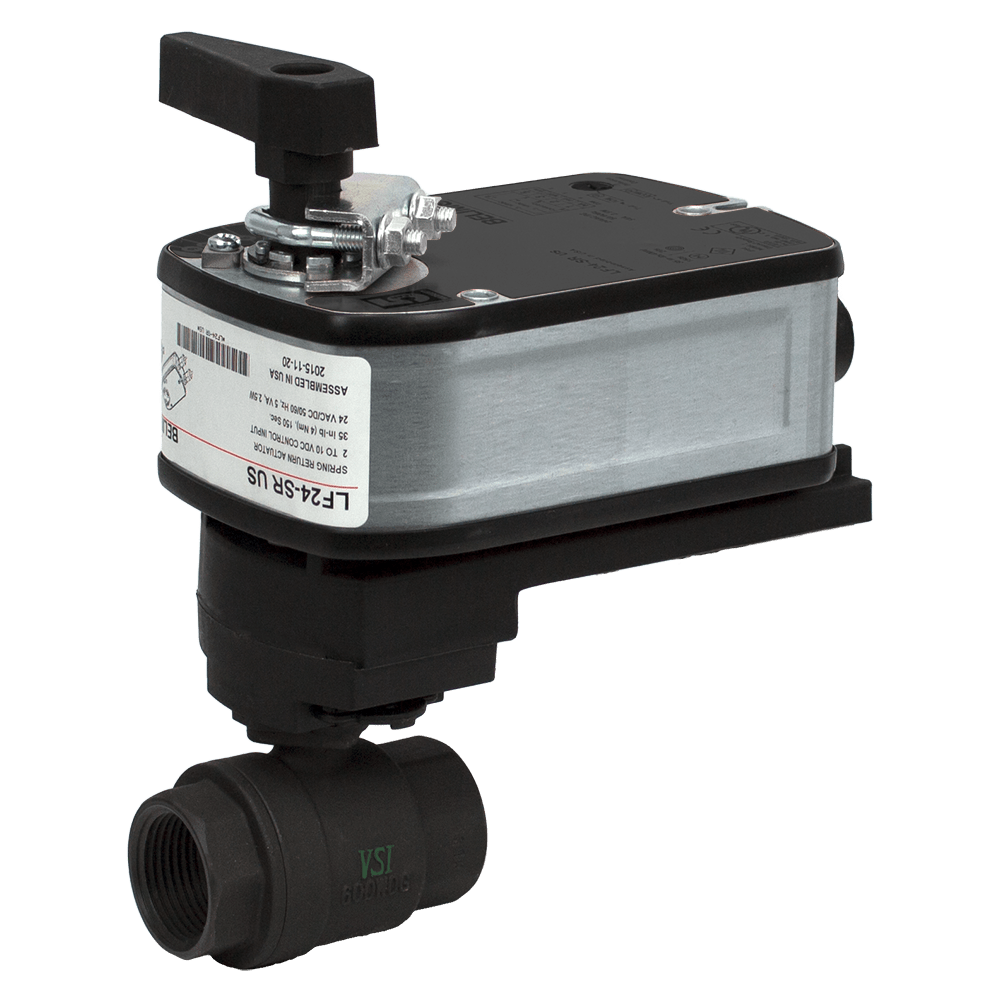

Series VC with Belimo and black plate
Categories: ,

V-Port Control Ball Valve (Series VC)

VSI’s Series VC Carbon Steel V-Port control ball valves provide a modified equal percentage flow characteristic for accurate control of flow rates in modulating control applications. A variety of characterized v-notch sizes are available to meet all custom flow requirements. The series VC features carefully selected seat and seal materials that makes it ideal for steam control applications.
• Precise Modulating Control
• High Temperature Seats
• 300:1 Rangeability
• Direct Actuator Mounting on 1″ and below

View All Ball Valve Assemblies

For more information, please check the Documentation tab below or send us an email. If you prefer to speak with one of our engineers, please call 770-740-0800.

Share

Features

  • Modified V-Port cast directly into the ball
  • High Rangeability: 300:1 Turn down ratio
  • Flow Characteristic: Modified Equal Percentage
  • Low Torque – will accept most damper actuators
  • Wide Cv range for various HVAC applications
  • 200psi zero-leakage close off
  • Body Material: 2 Piece Carbon Steel WCB
  • End Connections: Female NPT
  • Body Pressure Rating: 600 WOG (1.5”: 400WOG)
  • Working Pressure: 200psi Close Off
  • Max Steam Pres.: 50psi
  • Leakage: ANSI/FCI 70-2 Class VI (Zero Leakage)
Share

Documentation

Document TypeDownload
Valve Product BrochureDownload PDF
Series VC V-Port Control Ball Valve IOMDownload PDF
