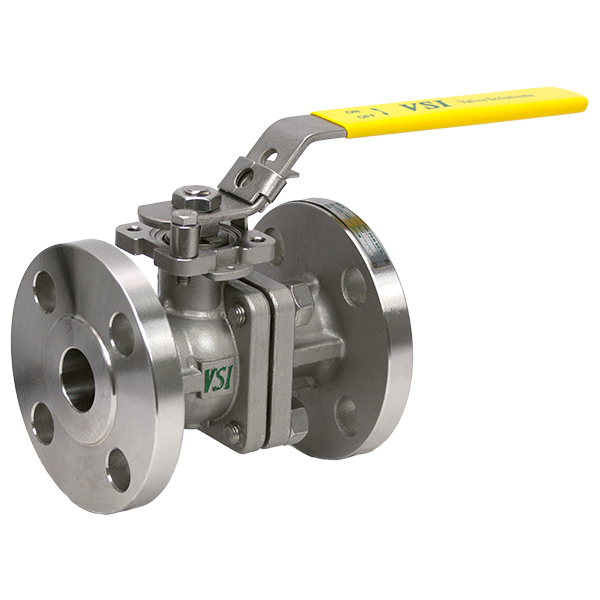

Flanged Full Port Ball Valve (Series 7200)

Body

The Series 7200 flanged full port ball valve features a two piece cast body which allows the valve to be easily disassembled for repairs or replacements. The body design is built to the ASME/ANSI B16.34 with materials meeting NACE MR0175 and with flanges designed to ASME B16.5 Class 150 and 300.

Mounting Plate

The mounting plate is designed to the ISO 5211 standard for the direct mounting of actuators, most gear operators and accessories.

Anti-Static Stem

The stem is designed with an anti-static ball device that maintains constant metal contact with body and ball/stem assembly. This constant contact eliminates the possibility of static spark, if the body and pipe are properly grounded.

Seats

The seats can be serviced in the field and are replaceable. When servicing the seats, a seat rebuild kit will be necessary.

Packing

The packing offers proper alignment for the stem in the valve body and reduces the torque of the valve. The V-cup packing design offers great sealing properties with the stem and body. Different materials are offered for the packing rings.

Bi-Directional Service

The Series 7200 flanged full port ball valves are qualified for bi-directional use in ANSI Class 150 and 300 service.

View All Ball Valve Assemblies

For more information about this flanged full port ball valve, please check the Documentation tab below or send us an email. If you prefer to speak with one of our engineers, please call 770-740-0800.

Features

Body

  • Stainless Steel (A351-CF8M)
  • Carbon Steel (A216-WCB)



Seat

  • TFM*
  • RPTFE
  • PEEK
  • ALTA



Ball

  • 316 Stainless Steel



Stem

  • 316 Stainless Steel



ISO 5211 Mounting Plate



Packing

  • PTFE*
  • Graphite



Anti-Static Stem


*Standard material – Options available
