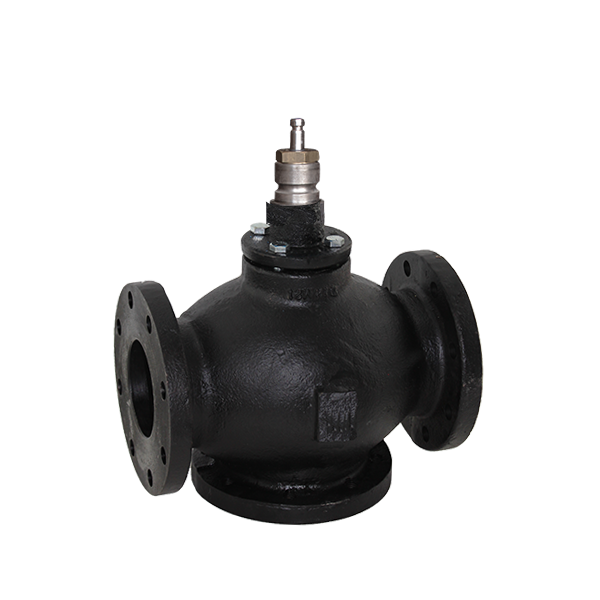

3 Way Flanged Cast Iron Globe Valves

The Flowrite VF 599 Series three-way valves are designed to work with either a pneumatic or electronic actuator. They are available in both ANSI Class 125 and 250.

A typical application for the Flowrite three-way valve is the mixing of two different temperatures of water supplies.

The valve can also be used for throttling or bypass coil control applications. A pump is recommended on the coil circuit to improve the heat transfer characteristics of the coil and for freeze protection.

View All Globe Valve Assemblies



Product Documentation

Document TypeDownload
Technical InstructionsDownload PDF

Additional Product Information

  • Valve flange face-to-face dimensions meet ISA 75.03 standards
  • Direct coupled universal bonnet
  • Choice of bronze or stainless steel trim
  • ANSI Leakage Class IV (0.01% of Cv)
  • Cartridge type packing
  • Optional service flange available
