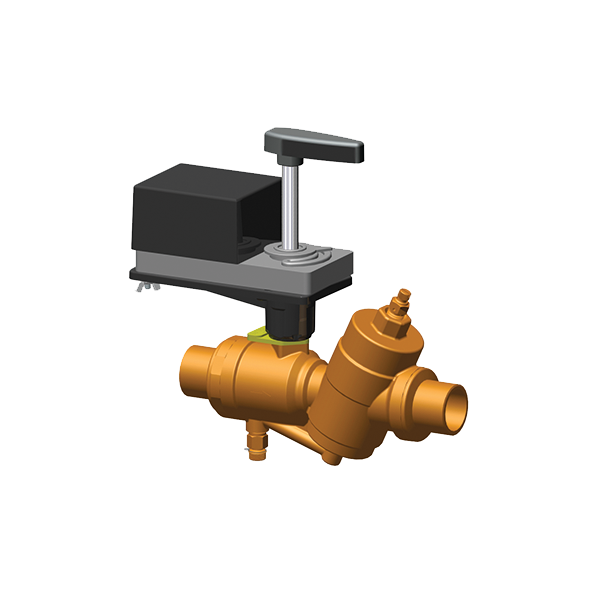

Griswold Space Saver PIC-V

Share

The Griswold Space Saver Pic-V is a 2-way valve available from ½” thru 3” that eliminates the need for balancing by accurately maintaining flow control regardless of changes in pressure.

These PIC-V valves will help reduce energy costs by ensuring precise control of the available flow rates from 1 GPM to 95 GPM.

Please contact a VSI representative for more details about the PIC-V offering.

Features

Static Pressure: 360 PSI
Temperature Range: -22F to 250F
Service: Chilled water, hot water, up to 50% Glycol, or contact factory for additional fluids.
Flow Optimizer: Glass Filled Polymer
Body Material: Forged Brass ASTM B283-06
End Connections: Brass
Stem: Brass
Stem Seals: EPDM O-Rings
Ball Valve: Nickel-plated brass ball
Optional: Stainless Steel ball
Field Repairable Stem: Dual Teflon seals and EPDM O-ring
Ball Seals: Teflon Seals with EPDM O-Rings
Accessories: Combination P/T Test Valve and Manual Air Vent (CPTA) Standard
